Introduction

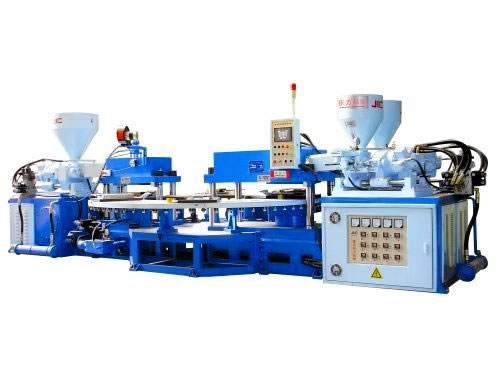

Products by this three color PVC flip flops strap making machine are flip flops strap of one/two/three color PVC shoes like slippers, thin-sole shoes, and three color PVC plastic products, such as foot pads for motorcycles and electro-mobiles. The machine is mainly made up of main machine, auxiliary machine and disc feeder.
Features
(1) Clamping Force of three color flip flops strap making machine can achieve 100T, its maximum size is 400 × 400 mm. So, the machine is rather suitable to produce large-size items.
(2) This machine is controlled by PLC in an industrial computer-human interactive interface system.
(3) Double proportional hydraulic system is applied into three color flip flops strap production line to control pressure and flow.
(4) Digital measurement makes data accurate.
(5) PVC flip flops strap making machine is designed rationally in operation, so it can work even without professors.
(6) It meets high productivity with low energy consuming and human labor.
(7) Main part of this shoes injection moulding machine can be interchanged with auxiliary machine to produce one/two/three color products.
Parameters of JIC806 Three Color PVC Flip Flops Strap Making Machine
|
Item
|
Unit
|
Specification
|
|
Type
|
|
JIC806
|
|
Row Material
|
|
PVC
|
|
Workstation
|
|
6 ,8 ,10
|
|
Screw Diameter
|
mm
|
Ø60, Ø45 × 2
|
|
Injection Volume (Max.)
|
cm3
|
565, 240 × 2
|
|
Rated Injection Pressure
|
MPa
|
80
|
|
Heating Power
|
KW
|
16
|
|
Motor Power
|
KW
|
15 ,11
|
|
Screw Rotation Speed
|
r.p.m
|
0-155
|
|
Clamping Power
|
T
|
100
|
|
Mould Size (Max.)
|
mm
|
400 × 400 × 100
|
|
Mould Height
|
mm
|
30-100
|
|
Machine Size
|
mm
|
6300 × 2850 × 1920
|
|
Gross Weight
|
kg
|
10000
|
Our company is specialized in machines for making soles of slippers, sandals and sneakers in materials like EVA, PVC, TPR, and RB, etc. We have professional designing technology, research capability, production, and marketing in shoe-making machine field. Besides, we offer considerate services to customers.
