Introduction

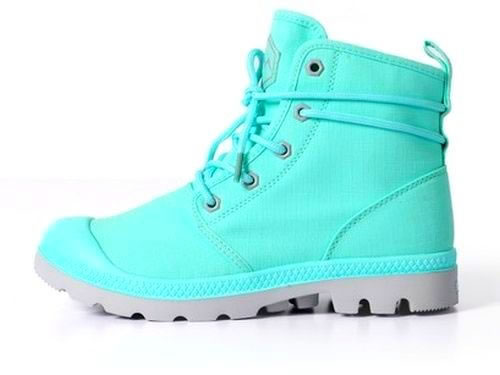

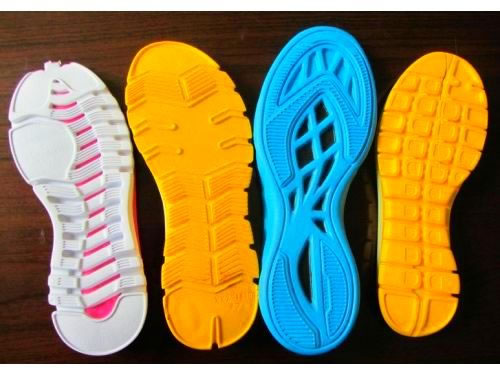

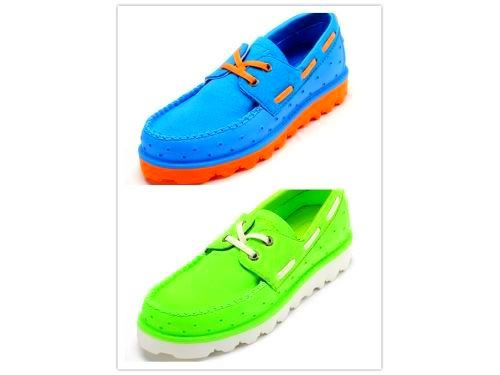

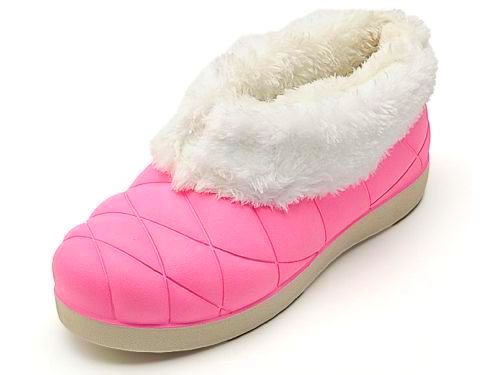

Double color EVA shoes injection machine is designed to use EVA as raw material to produce two color soles and various kinds of EVA foaming products.
Properties
1.Two color EVA injection moulding machine is in toggle-clamp and linear system. It is durable and its maintenance is easy.
2. Security alarm gate and safety gate promise high-security environment.
3. Its vacuum system helps insure quality of final products.
4. Hi-tech control panel and touch screen provide high-accuracy and easy management.
5. To keep accurate temperature condition, PID temperature system is used to control the injection unit and heating plate by double color EVA shoes injection machine.
6. Switching mechanism offers a rapid mould-opening way.
7. It owes excellent hydraulic circuit to save energy.
Features
1. Injection System
Controlled under PLC and PC systems, it uses a potentiometer to work out the accurate quantity of material needed. Two color EVA injection moulding machine applies linear rails and immediate-brake motor drive to promise rapid movement of infectors. The location machine can measure the accurate location with rotary encoder.
2. Mould Closing System
Double color EVA shoes injection machine works rapidly in mould opening/closing system. Mould closing system is assured to proceed in a hermetic unit. Machine is designed in low operation height to make it flexible to use different moulds.
3. Controlling System
Two color EVA injection moulding machine applies human-computer interaction interface and touch screen on basis of windows operation system. It realizes real-time controlling in producing process, including material rotate speed, injection quantity, infection time, injection temperature, sulfuring time and productivity. In PLC and PC controlling system, it is functionally clear and operationally easy.
4. Oil Hydraulic System
Double color EVA shoes injection machine applies proportional control valve to control oil pressure and flow.
5. Energy Saving
The heating plate is made from efficient thermal insulation material and works in water-free condition.
6. Two Production Patterns
Two color EVA injection moulding machine can work in both single color pattern and double color pattern.

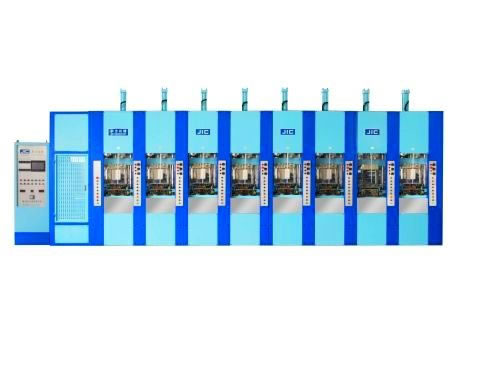

Parameters of JIC9208 Two Color EVA Shoes Injection Machine
|
Item
|
Unit
|
Specifications
|
|
|
|
|
Type
|
|
JIC9206
|
JIC9208
|
|
|
Raw Material
|
|
EVA
|
EVA
|
|
|
Workstation
|
|
6
|
8
|
|
|
Screw Diameter
|
mm
|
Ø60 × 2
|
Ø60 × 2
|
|
|
Screw Rotation Speed
|
r.p.m
|
0-165
|
0-165
|
|
|
Injection Volume (Max.)
|
cm3
|
920 × 2
|
920 × 2
|
|
|
Rated Injection Pressure
|
MPa
|
100
|
100
|
|
|
Screw Heating Power
|
KW
|
12
|
12
|
|
|
Mould Heating Power
|
KW
|
38
|
51
|
|
|
Motor Power
|
KW
|
52
|
52
|
|
|
Gross Power
|
KW
|
97
|
108
|
|
|
Clamping Force
|
T
|
150
|
150
|
|
|
Mould Size (Max.)
|
mm
|
330 × 550
|
330 × 550
|
|
|
Mould Height
|
mm
|
100-350
|
100-350
|
|
|
Dimension
|
mm
|
9000 × 5200 × 3100
|
10600 × 5200 × 3100
|
|
|
Gross Weight
|
kg
|
26000
|
33000
|
|
Machines from Lanteky Co., Ltd. have gained good reputations both at home and abroad by virtue of high-quality, effective and considerate services. Our products have been widely sold to countries like Bengal, Indonesia, Vietnam, Pakistan, Russia, Brazil and countries in Central Asia.
