Properties
1. Products by air blowing PVC slipper injection machine are soft and comfortable. Compared with traditional air blowing injection machine, this air blowing machine can reduce weight of its product by 20%-30%.
2. Commixture of old material and new material is applicable in our PVC air blowing slipper injection machine, and the products are of equal quality with those by unmixed new material.
3. The exact designing of machine helps to accommodate moulds of larger size. Our air blowing PVC slipper injection machine applies cooling system to advance quality of shoe products.
4. The co-operation of oil pressure controlling, electric appliances, machineries and pneumatic system brings advantages of larger production with lower energy consuming and labor power.
5. All operations are controlled by PLC in the computer-human interaction interface, thus the production process is accurate and manipulation is easy.
6. Protection switches are used to insure security of manipulator and components of PVC air blowing slipper injection machine.
Features
1. The air blowing PVC slipper making machine is in double proportional hydraulic controlling system, which increases its functions and stability. Product quality is promised by injection system’s co-monitoring of pressure and flow.
2. PVC air blowing slipper injection machine realizes the complete automation. With modern automatic expanding machines, labor power is saved and operation is more accurate.
3. Customers can put it into production of all kinds of PVC shoes, such as sandals, slippers and PVC soles.
4. A cooling circulatory system is applied in PVC air blowing injection machine to advance quality of products and cooling capacity.
5. All professional operations, such as injection, material supply, disc rotation, clamping, etc. are programmed into controlling system. It can promise co-ordination of all parts.
Application Scale
Our PVC air blowing slipper injection machine is applicable to various shoes injection machines, including foaming injection machine.

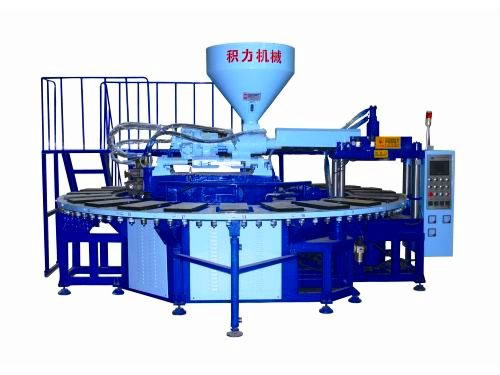

Parameters of JIC724A PVC Air Blowing Slipper Injection Machine
|
Item
|
Unit
|
Specification (A)
|
Specification (B)
|
|
Type
|
|
JIC724A
|
JIC724B
|
|
Raw Material
|
|
PVC
|
PVC
|
|
Workstation
|
|
24
|
24
|
|
Injection Volume (Max.)
|
cm3
|
770
|
770
|
|
Rated Injection Pressure
|
MPa
|
75
|
75
|
|
Heating Power
|
KW
|
7
|
7
|
|
Limit of Temperature
|
Point
|
4
|
4
|
|
Screw Rotation Speed
|
r.p.m
|
0-150
|
0-150
|
|
Screw Diameter
|
mm
|
θ70
|
θ70
|
|
Motor Power
|
KW
|
19
|
19
|
|
Clamping Force
|
T
|
60
|
60
|
|
Mould Size (Max.)
|
mm
|
460 × 220 × 300
|
460 × 220 × 300
|
|
Mould Height
|
mm
|
135-300
|
50-300
|
|
Machine Size
|
mm
|
4050 × 4050 × 2250
|
4050 × 4050 × 2250
|
|
Gross Weight
|
kg
|
6500
|
6500
|
By virtue of high quality, our products are sold abroad received public prices among our customers from Bengal, Indonesia, Vietnam, Pakistan, Russia, Brazil and countries in Central Asia. We look forward to keeping a long-term mutual-benefit commercial cooperation with our customers.
