Introduction
1. Components

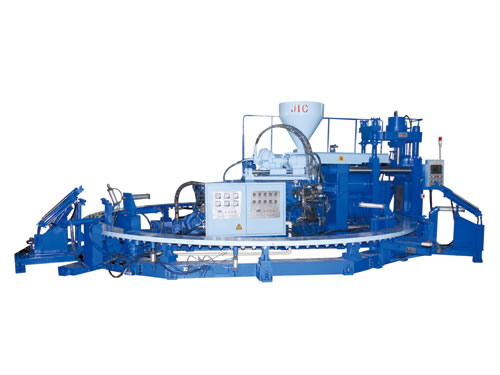

Double color rotary PVC boot making machine is mainly composed of clamping system, injection system, controlling system, hydraulic system and disc feeder.
2. Products by the Machine

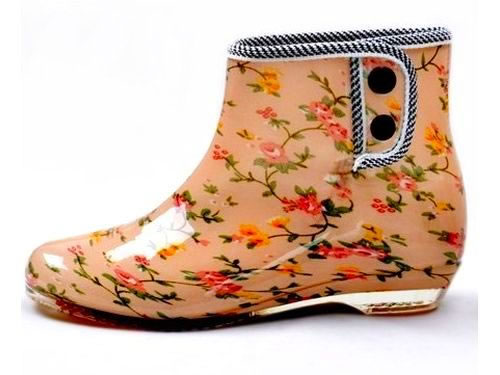

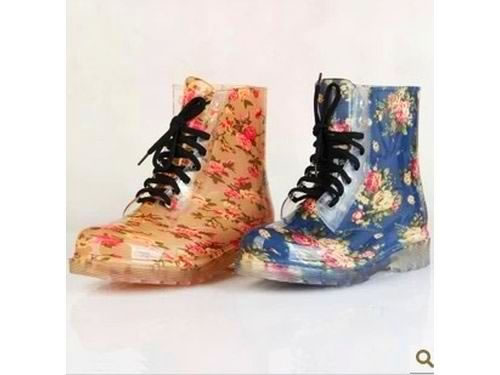

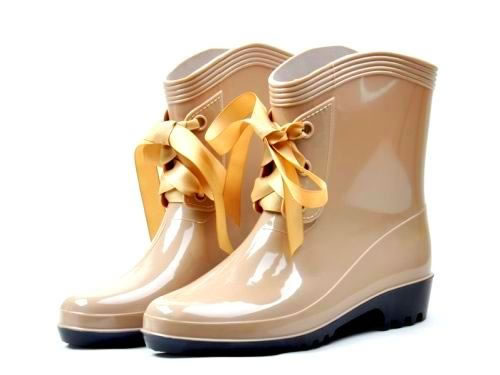

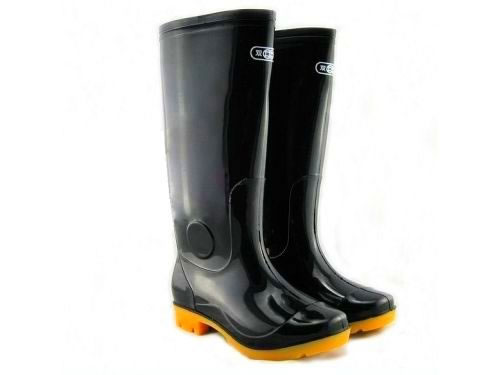

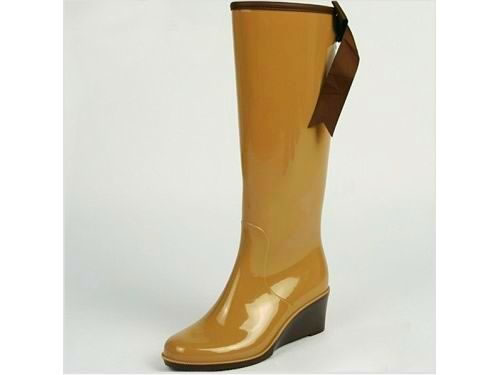

Products by our two color rotary boot making machine are PVC rain boots for adults/children and PVC safety shoes (height of rain boots is below 400 mm).
Features
1. Double color rotary PVC boot making machine applies industrial human-computer interaction interface. It is controlled by PLC system and its information is displayed on touch screen.
2. Pressure and flow are accurately adjustable in double proportional hydraulic systems. Accurate data advances stability of producing process. Operation on hydraulic system is easy and convenient. .
3. Double color rotary PVC boot making machine is rationally designed and easy to operate. It can be operated even without professors.
4. Mechanical arm is attached to two color rain boot making machine to promise that whole automatic producing process is labor-saving.
5. Variable pump and servo motor are offered to customers. It saves electric power for customers because variable pump of the double color rotary PVC boot making machine can reduce power by 25% and servo motor by 35% (accurate data may fluctuate in actual work).
Advantages
1. Our company owes a large sale volume of rotary PVC boot making machine in China. The PVC boot injection machine can produce PVC rain boots for adults/children and PVC safety shoes.
2. The gland system works with single cylinder, which makes pressure high and products well-distributed with little fins. Servo motor is selectable for rotary PVC boot making machine, which helps the two PVC rain boot making machine reduce noise and electric energy consumption by 30%.
Parameters of JIC612A Two Color Rotary PVC Boot Making Machine
|
Item
|
Unit
|
Specifications
|
|
Type
|
|
JIC612A
|
JIC614A
|
JIC616H
|
|
Raw Material
|
|
PVC
|
PVC
|
PVC
|
|
Workstation
|
|
12
|
14
|
16
|
|
Injection Volume (Max.)
|
cm3
|
1130,560
|
1270,660
|
1420,880
|
|
Rated Injection Pressure
|
MPa
|
52 ,80
|
52,80
|
52,80
|
|
Heating Power
|
KW
|
8,7
|
8,7
|
8,7
|
|
Limit of Temperature
|
Point
|
4
|
4
|
4
|
|
Screw Rotation Speed
|
r.p.m
|
0-150
|
0-150
|
0-150
|
|
Screw Diameter
|
mm
|
Ø90 ,Ø65
|
Ø90 ,Ø70
|
Ø95 ,Ø75
|
|
Motor Power
|
KW
|
22 ,15
|
22 ,18.5
|
22 ,18.5
|
|
Claming Force
|
T
|
250 ,45
|
250 ,45
|
250 ,45
|
|
Mould Size (Max.)
|
mm
|
680 × 360 × 200
|
680 × 360 × 200
|
680 × 360 × 200
|
|
Machine Size
|
mm
|
5700 × 5200 × 2410
|
6200 × 5200 × 2450
|
6600 × 5900 × 2450
|
|
Gross Weight
|
kg
|
18000
|
19000
|
20000
|
Our company has developed a series of shoes making machines, including EVA foaming injection machine, PVC rain boot machine, air blowing shoes machine, upper and strap injection machine, sole injection machine, slipper shoes injection machine, sandal shoes injection machine, shoes auxiliary equipment and shoe mould in past years.
